SWXFR1210
Switch between inverter power and shore power automatically.
Switch between inverter power and shore power automatically.
Converts 12V battery power to 120V household AC power identical to that supplied by the local utility company. Ideal for running tools and appliances flawlessly while away in your car, truck, boat or RV; and for ensuring motor loads run at optimal efficiency at your remote home or cabin.
Features include:
Features And Benefits
Dimensions (L x W x H):
SWXFR1210: 19.0” x 11.3“ x 6.7” (482.6 x 287.0 x 170.2mm)
Weight:
SWXFR1210: 11.5 lbs. / 4.9 Kg
| SWXFR SERIES (TRUE/PURE SINEWAVE) | SWXFR 1210 |
| AC OUTPUT | |
| POWER (CONTINUOUS) | 1000W |
| POWER (PEAK) | 2000W |
| VOLTAGE / FREQUENCY | 120 VAC / 60 Hz |
| CURRENT | 8.3A |
| WAVEFORM | True Sinewave (<3% THD) |
| PEAK EFFICIENCY | 90% |

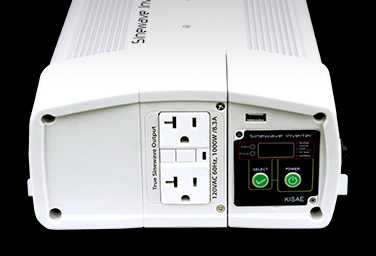

| AC OUTPUT SOCKET | NEMA 5-15 GFCI |
| DC OUTPUT | |
| 5V USB | 2.1A |
| DC INPUT | |
| VOLTAGE (NOMINAL) | 12.5Vdc |
| OPERATION RANGE | 10.5 – 15.5Vdc |
| INVERTER STANDBY CURRENT | < 1.5A |
| DISPLAY PANEL | |
| INDICATOR | Status |
| DIGITAL DISPLAY (LED) | Input Voltage, Output Power, Warning and Error Code |
| PROTECTION | |
| INPUT UNDERVOLTAGE SHUTDOWN | 10.5Vdc |
| INPUT OVERVOLTAGE SHUTDOWN | 15.5Vdc |
| AC TRANSFER SWITCH | |
| TRANSFER TIME | <30ms |
| TRANSFER RELAY RATING | 30A |
| REGULATORY COMPLIANCE | |
| MARKINGS | cETLus |
| CONFORMANCE | UL & CSA Standards |
| ENCLOSURE | |
| WEIGHT | 11.5 lbs |
| DIMENSION | 17.3 x 9.1 x 4.5″ |
