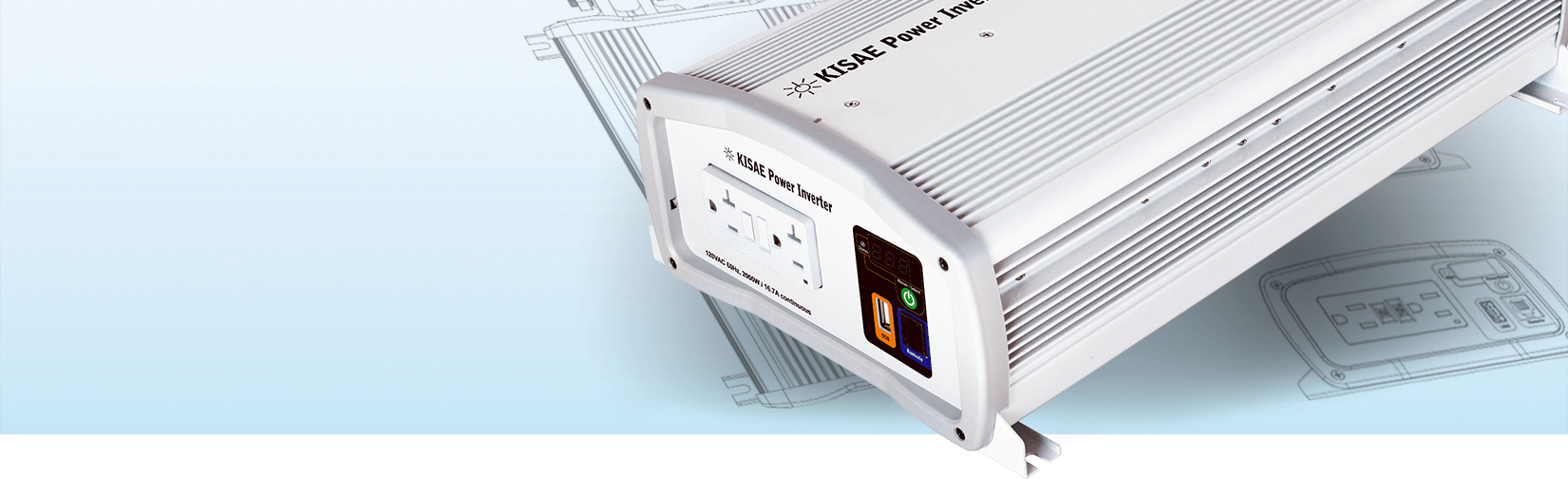

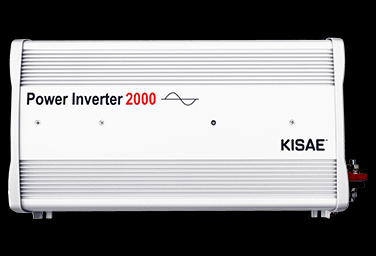

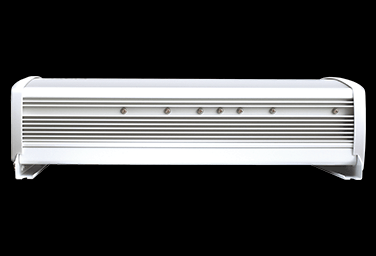

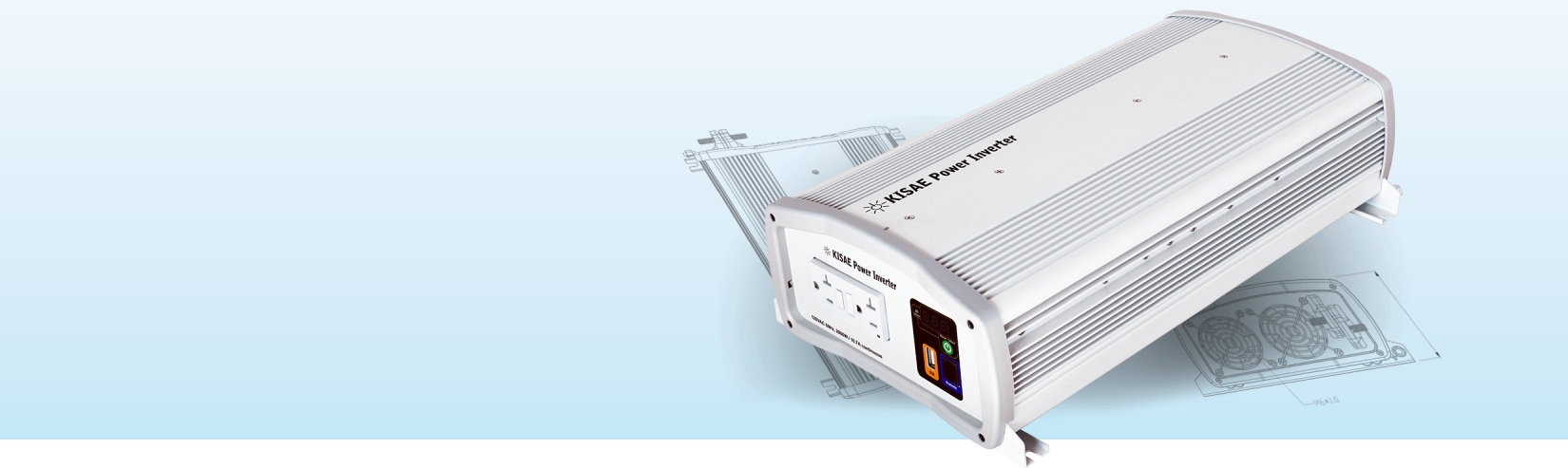

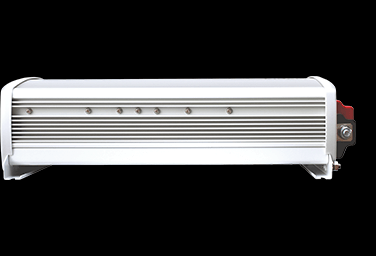

SW1220
A premium power solution for running sensitive electronics that draw up to 2000 watts continuous.
A premium power solution for running sensitive electronics that draw up to 2000 watts continuous.
Converts 12V battery power to 120V household AC power, the same as supplied by the local utility company. Ideal for running power tools, electronics and appliances flawlessly while away in your car, truck, boat, RV, remote home or cabin.
Features include:
Features And Benefits
Dimensions (L x W x H):
SW1220: 9.5” x 16.5” x 4.5” (241 x 419 x 114mm)
Weight:
SW1220: 12 lbs. / 5.4 Kg
| SW SERIES (TRUE/PURE SINEWAVE) | SW 1220 |

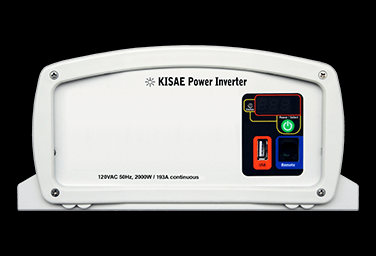

| AC OUTPUT | |
| POWER (CONTINUOUS) | 2000W |
| POWER (PEAK) | 4000W |
| VOLTAGE / FREQUENCY | 120 VAC / 60 Hz |
| CURRENT | 16.6A |
| WAVEFORM | True Sinewave (<3% THD) |
| PEAK EFFICIENCY | 89% |
| AC OUTPUT SOCKET | NEMA 5-20 GFCI |
| DC OUTPUT | |
| 5V USB | 2.1A |

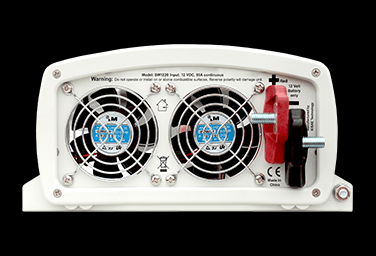

| DC INPUT | |
| VOLTAGE (NOMINAL) | 12.5Vdc |
| OPERATION RANGE | 10.5 – 15.5Vdc |
| CURRENT (NO LOAD) | < 1.2A |
| DISPLAY PANEL | |
| INDICATOR | Status |
| DIGITAL DISPLAY (LED) | Input Voltage, Output Power, Warning and Error Code |
| PROTECTION | |
| INPUT UNDERVOLTAGE SHUTDOWN | 10.5Vdc |
| INPUT OVERVOLTAGE SHUTDOWN | 15.5Vdc |
| REGULATORY COMPLIANCE | |
| MARKINGS | cETLus |
| CONFORMANCE | UL & CSA Standards |
| ENCLOSURE | |
| WEIGHT | 11.5 lbs |
| DIMENSION | 16.3 x 9.1 x 4.3″ |
