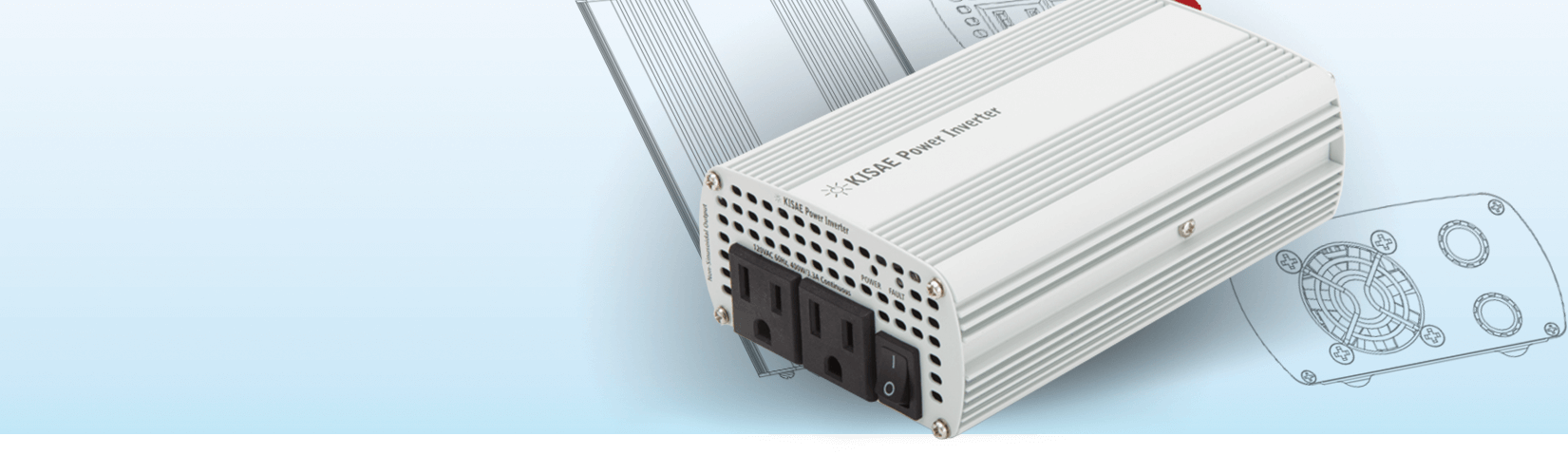

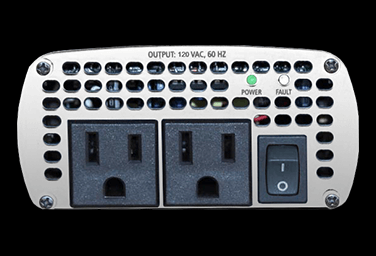

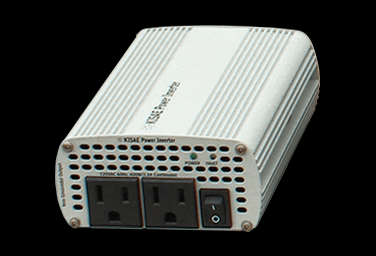

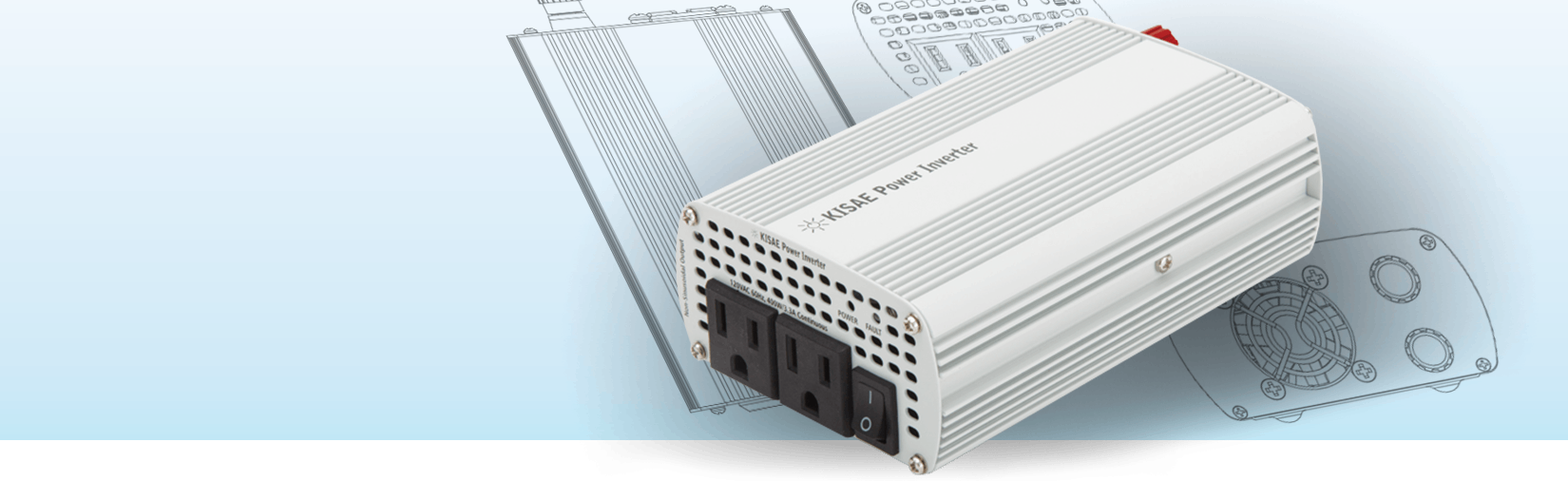

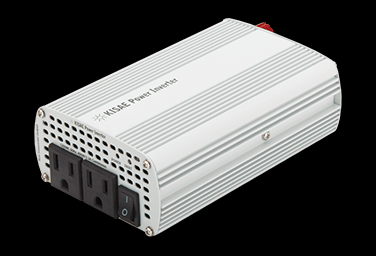

MW1204
An economical power solution for running power tools and electronics that draw up to 400 watts.
An economical power solution for running power tools and electronics that draw up to 400 watts.
Modified Sine Wave Series
Converts 12V battery power to 120V household AC power and is ideal for running household electronics in your car, truck, boat or RV.
Features include:
Features and Benefits
Dimensions (L x W x H):
MW1204: 4.0 x 6.0 x 2.5” (102 x 152 x 51mm)
Weight:
MW1204: 1.8 lbs. / 0.8 Kg
| MW SERIES (MODIFIED SINEWAVE) | MW 1204 |
| AC OUTPUT | |
| POWER (CONTINUOUS) | 400W |
| POWER (PEAK) | 800W |
| VOLTAGE / FREQUENCY | 120 VAC / 60 Hz |
| CURRENT | 3.3A |
| WAVEFORM | Modified Sinewave |
| PEAK EFFICIENCY | 90% |
| AC OUTPUT SOCKET | NEMA 5-15 |
| DC OUTPUT | |
| 5V USB | N/A |
| DC INPUT | |
| VOLTAGE (NOMINAL) | 12.5Vdc |
| OPERATION RANGE | 10.5 – 15.5Vdc |
| CURRENT (NO LOAD) | < 0.3A |
| DISPLAY PANEL | |
| INDICATOR (LED) | Power, Fault |
| DIGITAL DISPLAY | N/A |
| PROTECTION | |
| INPUT UNDERVOLTAGE SHUTDOWN | 10.5Vdc |
| INPUT OVERVOLTAGE SHUTDOWN | 15.5Vdc |
| REGULATORY COMPLIANCE | |
| MARKINGS | cETLus |
| CONFORMANCE | UL & CSA Standards |
| ENCLOSURE | |
| WEIGHT | 1.6 lbs |
| DIMENSION | 4 x 6 x 2″ |
