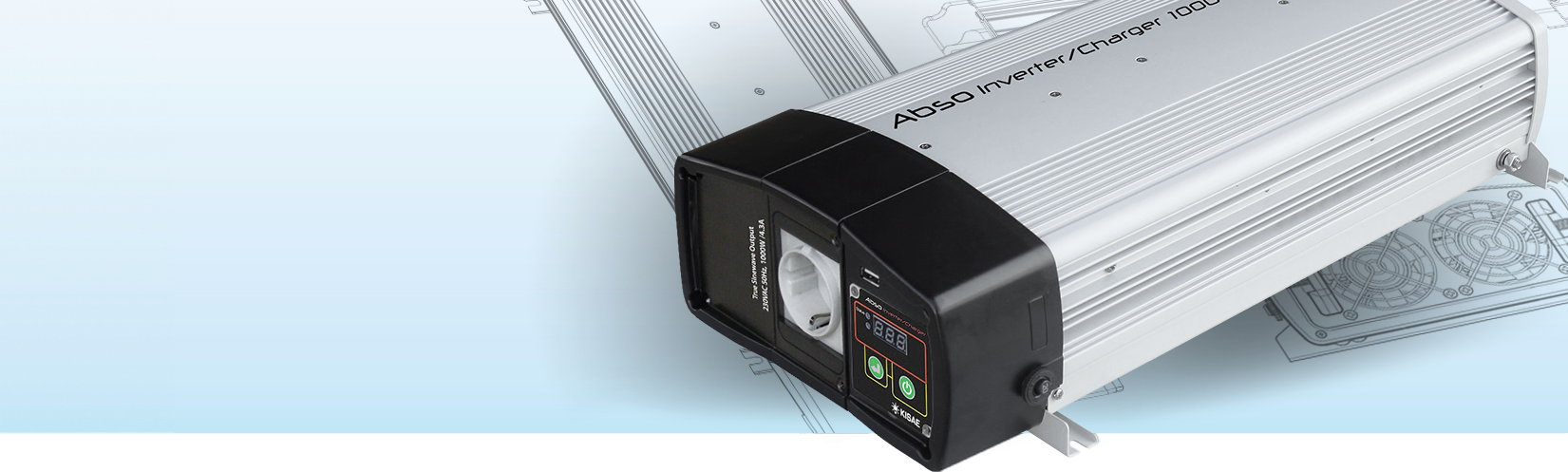

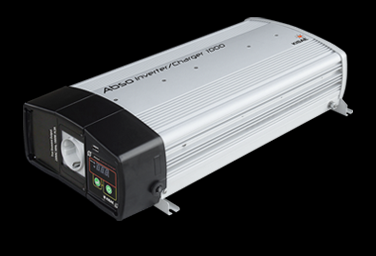

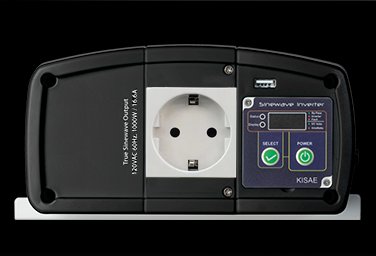

IC121040i
The perfect balance of power, combining a pure sine wave inverter with a smart battery charger
The perfect balance of power, combining a pure sine wave inverter with a smart battery charger
High Frequency Series
Combines KISAE’s renowned true sinewave inverter technology with its smart battery charger technology, resulting in the ability to run household appliances, electronics and power tools in your truck, boat or caravan and properly recharge your batteries.
Features include:
Features And Benefits
Dimensions (L x W x H):
IC121040i: 478 x 230 x 114mm (18.8” x 9.1” x 4.5”)
Weight:
IC121040i: 5.7 Kg / 12.5 lbs.
| Power (Continuous) | 1000W |
| Power (Peak) | 2000W (5 seconds) |
| Voltage/Frequency | 230VAC / 50 Hz |
| Current | 4.3A |
| Waveform | True Sine Wave (<3% THD) |
| Peak E | 90% |
| AC Receptacle | UK, EU, AU/NZ |
| 5V USB Output | 2.1Vdc |
| Voltage (nominal) | 12.5Vdc |
| Operation Range | 10.5 – 15.5Vdc |
| Inverter Standby Current | < 1.5A |
| Input Undervoltage Shutdown | 10.5 / 11.0Vdc |
| Inverter Overvoltage Shutdown | 15.5Vdc |
| Digital Remote Panel | Detachable (included) |
| Digital Display (LED) | Input Voltage, Output Power, Warning, Error Code |
| Charger Voltage Range | 13.5 – 14.4V |
| Float Voltage Range | 13.4 – 13.8V |
| Charger Current | 40A |
| Charger Battery Type | GEL, Flooded, AGM, Lithium, Programmable, Power Supply |
| AC Input Voltage/Frequency | 230VAC / 50Hz |
| Transfer Time | <30ms |
| Transfer Relay Rating | 16A |
| Markings | CE, e-Mark |
| Conformance | LVD, EMC |
| Weight | 5.7 Kg / 12.5 lbs. |
| Dimension | 478 x 230 x 114 mm / 18.8 x 9.0 x 4.5” |
| Ignition Start Module | ISRM01 |
| Battery Temperature Sensor | BTS 10K (For battery charging voltage adjustment) |
