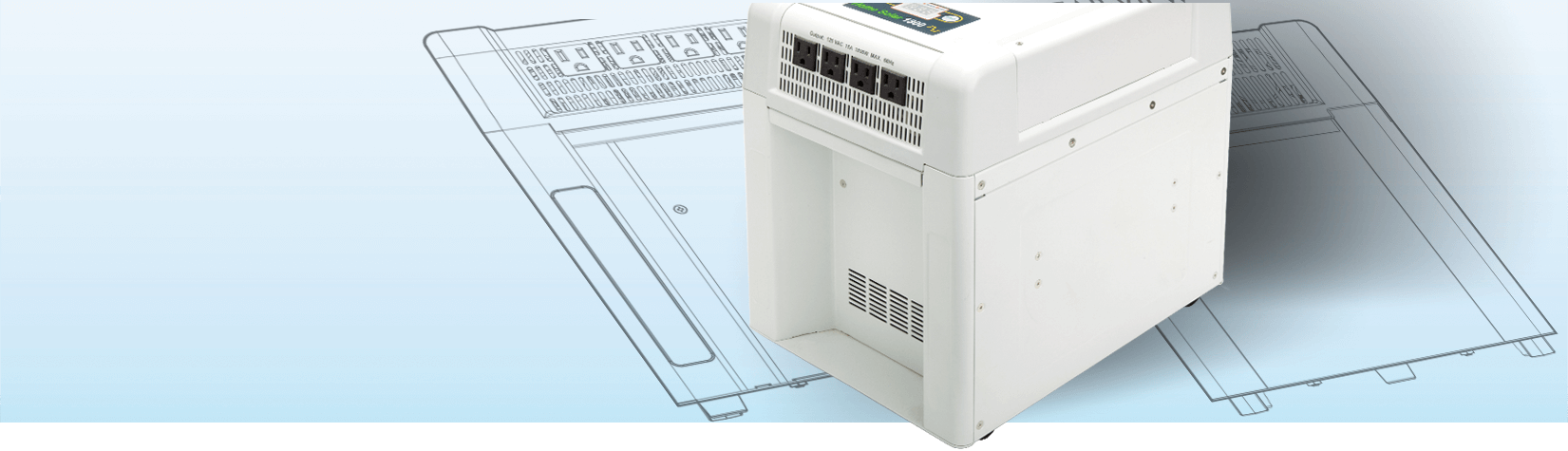

HS1800
The complete plug-n-play backup power system.
The complete plug-n-play backup power system.
Backup Power Series
The package combines a DC-AC power inverter, a battery, AC charger, solar charge controller, and transfer switch, plus all the connectors necessary for a separate solar PV panel all into one smart little package. Features everything needed to deliver power anytime, offering automatic emergency relief during power outages.
Features include:
Features And Benefits
Dimensions (L x W x H):
HS1800: 14.5” x 10.5” x 14.0” (365 x 370 x 355mm)
Weight:
HS1800: 76 lbs. / 35.4 Kg
| HOME SOLAR | HS 1800 |
| AC OUTPUT | |
| OUTPUT POWER (CONTINUOUS) | 1800W |
| OUTPUT POWER (PEAK) | 3600W |
| OUTPUT VOLTAGE / FREQUENCY | 120 VAC / 60 Hz |
| OUTPUT CURRENT | 15.0A |
| OUTPUT WAVEFORM | Modified Sinewave |
| PEAK EFFICIENCY | 90% |
| AC OUTPUT SOCKET | NEMA 5-15 |
| DC OUTPUT | |
| USB OUTPUT | N/A |
| 12V DC LIGHTER SOCKETDISPLAY PANEL | N/A |
| DISPLAY PANEL | |
| INDICATOR (LED) | Status |
| DIGITAL DISPLAY | Input Voltage, Output Power, Battery Capacity |
| AC CHARGER (BUILT-IN) | |
| CHARGER CURRENT | 5A |
| AC INPUT VOLTAGE/FREQUENCY | 120 VAC / 60 Hz |
| AC TRANSFER SWITCH | |
| TRANSFER TIME | < 30ms |
| INPUT CURRENT | 8 ADC maximum |
| CHARGER STAGES | Three-stages |
| MAXIMUM INPUT VOLTAGE | 26 VDC |
| BATTERY | |
| TYPE | Deep Cycle Sealed Lead Acid |
| CAPACITY | 60Ah |
| REGULATORY COMPLIANCE | |
| MARKINGS | cETLus |
| CONFORMANCE | UL & CSA Standards |
| ENCLOSURE | |
| WEIGHT | 76 lbs |
| DIMENSION | 14.5×10.5×14” |
