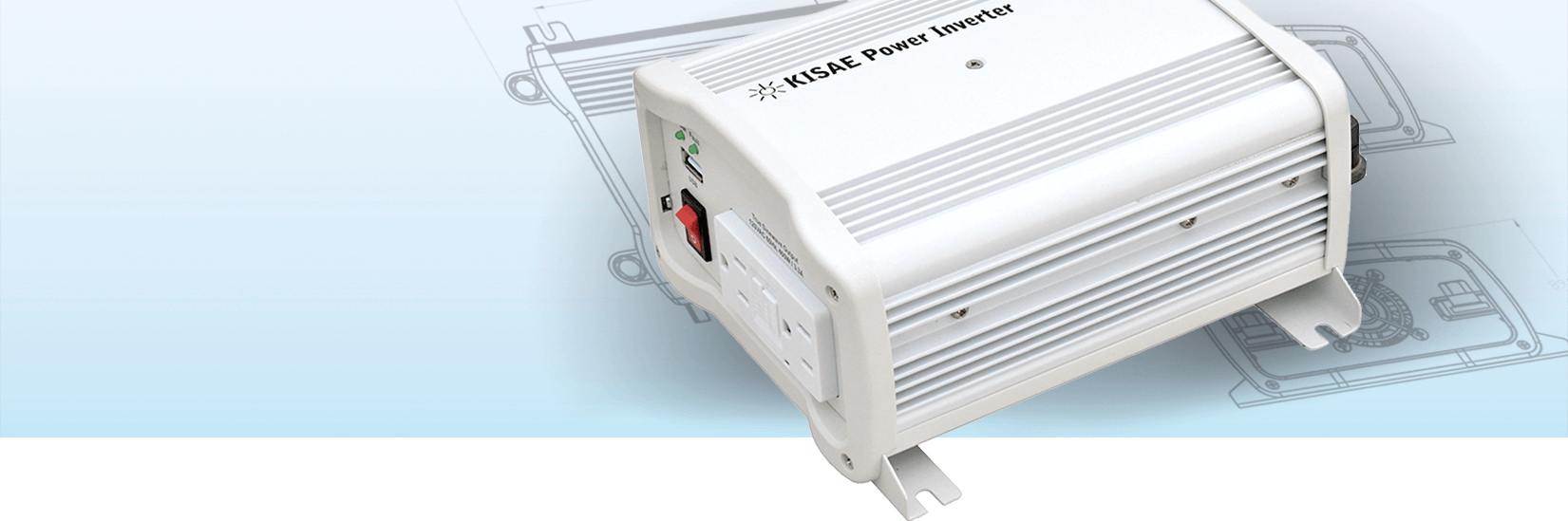

SW1204
A premium power solution for running sensitive electronics that draw up to 400 watts continuous.
A premium power solution for running sensitive electronics that draw up to 400 watts continuous.
Converts 12V battery power to 120V household AC power, the same as supplied by the local utility company. Ideal for running power tools, electronics and appliances flawlessly while away in your car, truck, boat, RV, remote home or cabin.
Features include:
Features And Benefits
Dimensions (L x W x H):
SW1204: 6.9” x 7.9” x 2.3” (175 x 201 x 58mm)
Weight:
SW1204: 3.8 lbs. / 1.7 Kg
| SW1204 SPECIFICATIONS | |
| AC Output | |
| AC Output Power (Continuous) | 400W |
| AC Output Power (Peak) | 800W |
| AC Output Voltage/Frequency | 120VAC / 60 Hz |
| AC Output Waveform | True Sine Wave (<3% THD) |
| Peak Efficiency | 90% |
| AC Receptacle | NEMA 5-15 |
| DC Output | |
| 5V USB Output | 750mA |
| DC Input | |
| Voltage (Nominal) | 12.5 Vdc |
| Operation Range | 10.5 – 15.5Vdc |
| Standby Current | < 0.3A |
| Protection | |
| Input Undervoltage Shutdown | 10.5Vdc |
| Input Overvoltage Shutdown | 15.5Vdc |
| Display Panel | |
| Indicator | Power, Fault |
| Regulatory Compliance | |
| Markings | cETLus |
| Conformance | UL & CSA Standards |
| Enclosure | |
| Weight | 3.8 lbs. |
| Dimension | 10.5 x 6.2 x 10.0” |
| Accessory (Optional) | |
| Remote ON/OFF | Yes |
